Product Description
Tuya Smart Video Doorbell Video Access Control Host
1. Call: One call will ring more than once, and one of the other smart terminals will hang up automatically.
2. Remote unlocking: The smart terminal answers the call from the smart host and unlocks it remotely.
3. Swipe the card to unlock: the host swipes the card to open the door, and the opening time can be set through the smart terminal.
4. Card management: The smart terminal is connected to the No. 1 smart host to let it enter the card issuing state.
5. Data synchronization: non-No. 1 smart host automatically synchronizes No. 1 data
6. Two-way voice: One-click voice calls can be initiated between smart terminals.
7. Two-way video: Two-way video calls can be initiated between smart terminals with one key (not standard).
8. Multi-intelligent hosts: up to 99 smart hosts.
9. Multi-smart terminals: up to 10 smart terminals (only 1 is supported under wireless connection).
10. IPC extension: By binding the IPC and the smart host through the smart terminal, the smart terminal can view the IPC real-time picture.
11. WiFi extension: Both the smart terminal and the smart host can extend the WiFi function.
12. Stick the wireless call switch at will: extended function, suitable for some occasions where the installation position of the smart host is not good.
Applicable scenarios:
1. It can be used independently and installed at the door to realize unlocking by swiping card and Tuya APP. The visitor presses the call button to make a video call with the user's mobile APP, and the owner can remotely unlock the mobile phone lock.
2. It can be used with indoor screen. The indoor screen can actively monitor the real-time monitoring screen of the door, and can also unlock the door. When someone comes to visit, the indoor screen can conduct video intercom with the visitor and open the door for the visitor.
3. It is suitable for multi-user scenarios in buildings. The face recognition video intercom can customize the multi-user address book. Each home is equipped with an indoor screen, and visitors will be automatically assigned to the corresponding user mobile app.

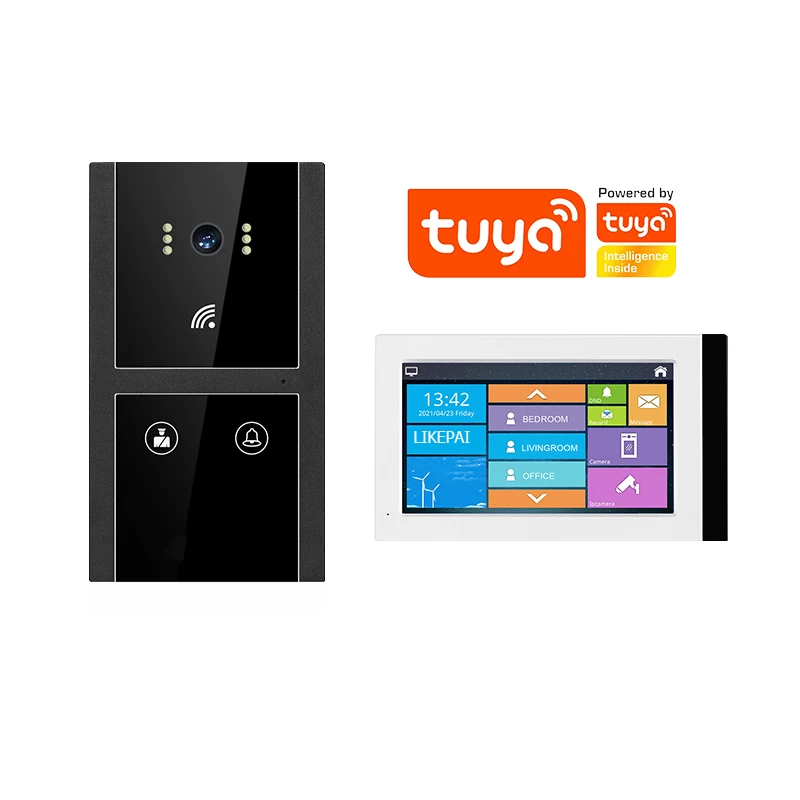

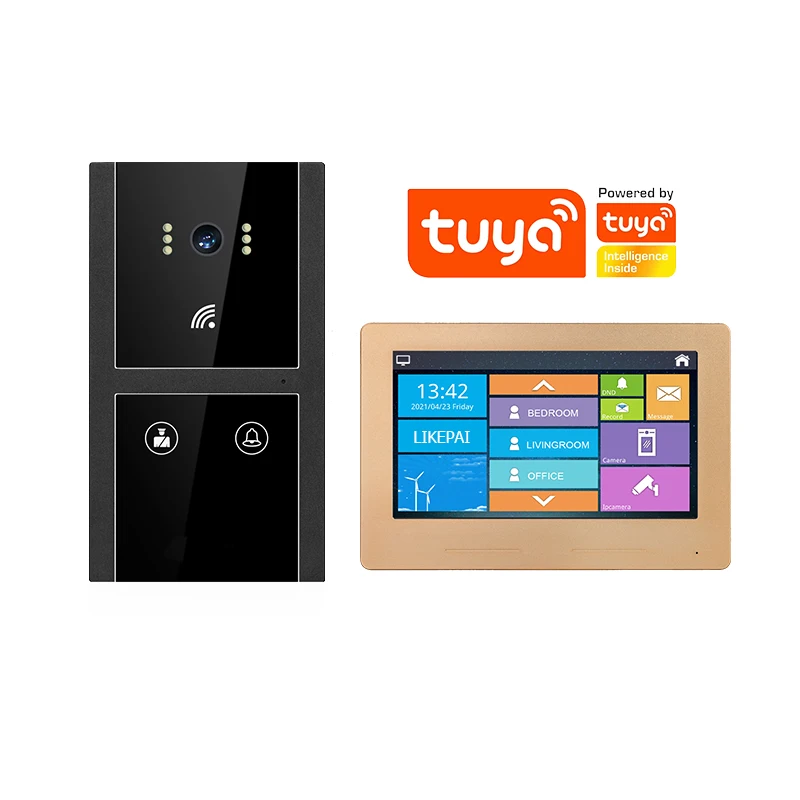

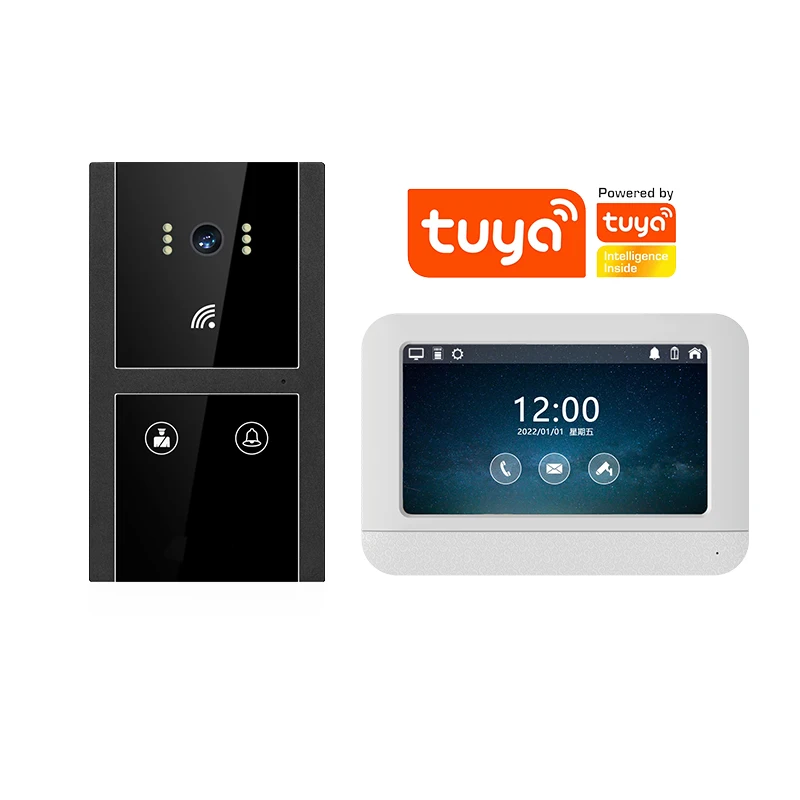

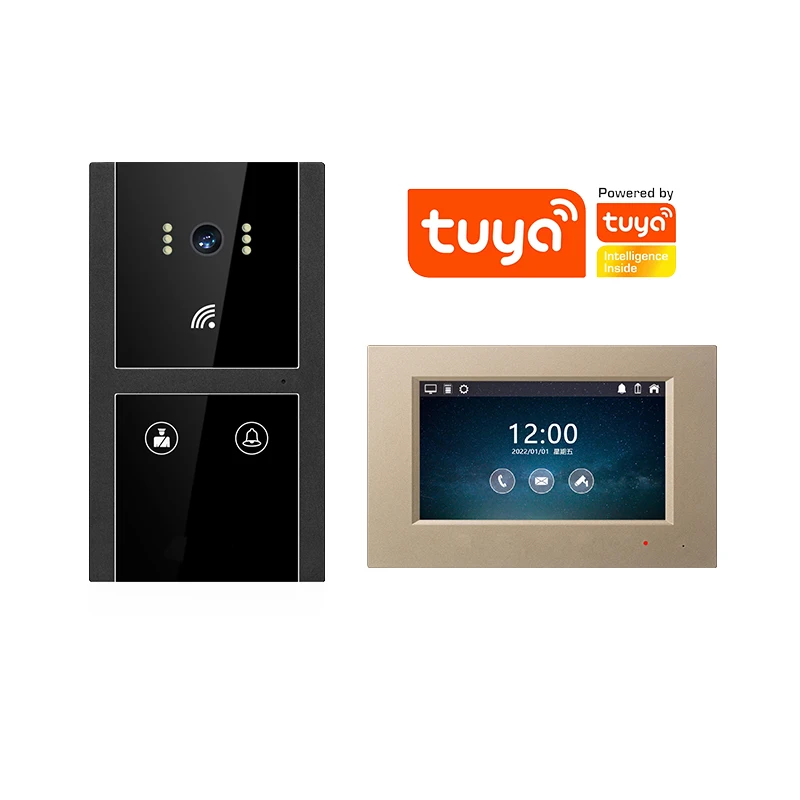

H5+P10N 1-1 Kit | H5+P7008 1-1 Kit | H5+P7007 1-1 Kit |

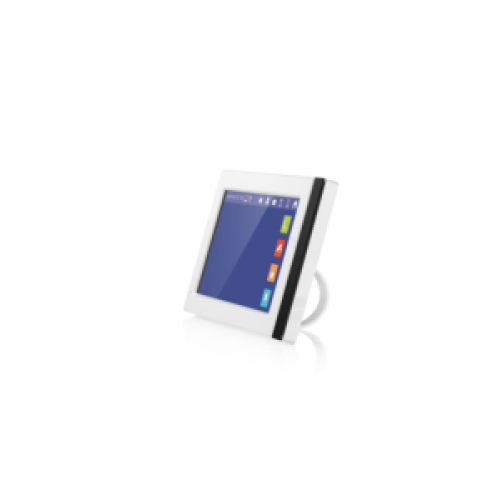

7inch IP & Wi-Fi Indoor Monitor
. Minimalism White/Black Desktop design
. 7'' IPS full view angle capacitive touch screen, 1024 x 600
. Receive video call from outdoor station, Talk & Remote Unlock
. Call outdoor station and audio intercom
. Live video view of linked IP Cameras
. Audio Call and Intercom among Monitors/ Door Stations
. WiFi connection optional
. Customized POE supported
. Memory for Support snapshot/ Record video
. Support different UI for different application scenarios

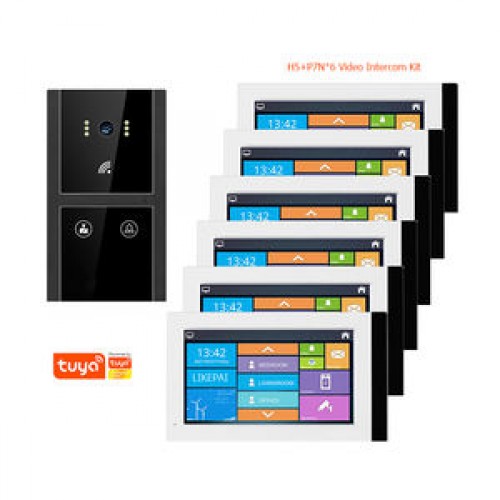

. Support multi indoor monitors and door stations in same system
. Support remote upgrade

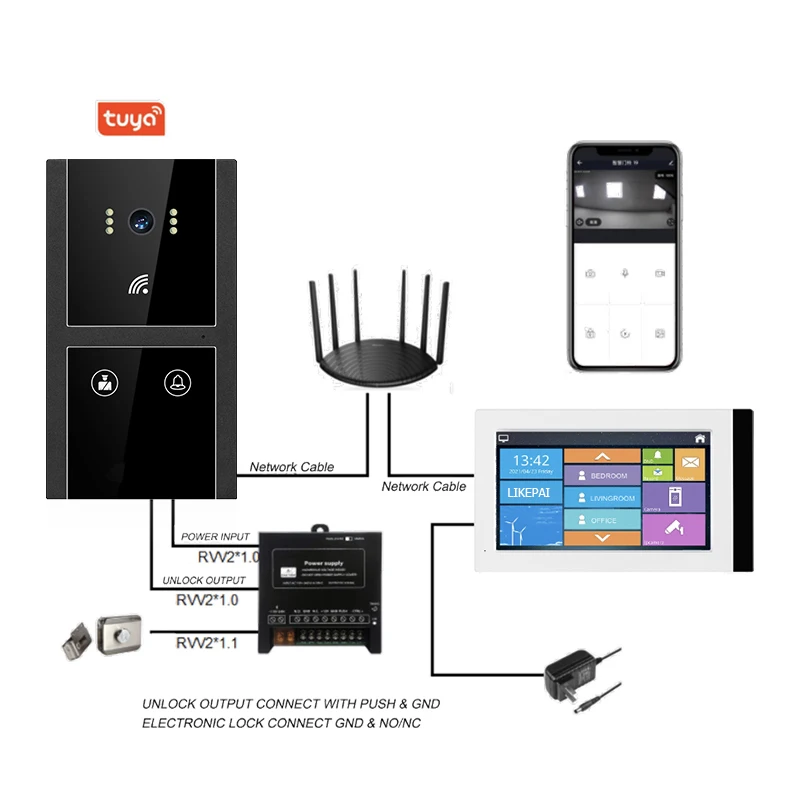

System diagram
Wiring diagram
Specification
Special Features | Motion Detection, RESET, Alarm I/O, Waterproof / Weatherproof, Two-way Audio, NIGHT VISION, Built-in Siren, Other |
Customized support | Software reengineering, OEM, ODM, Customized logo, Online technical support |
Place of Origin | China |
Guangdong | |
Brand Name | LIKEPAI |
Model Number | H5Tuya |
Recognition function | ID recognition |
APP | TuyaSmart and SmartLife |
Network Configuration | DHCP, static manual settings |
Connection method | LAN as default/ Wi-Fi |
Housing material | Aluminum alloy, surface sandblasting process |
Operation method | Full screen touch, tempered glass material panel |
Resolution | 800*1280 |
Screen display | 7-inch HD IPS display |
CPU | 800MHz ARM9/128Mb |
Camera | Dual 2MP lens, support backlight environment |
Video decoding | H264/720P/1080P |
Audio decoding | G.711 |
Waterproof level | IP65 |
Ringing | ≥70dB |
Working voltage | DC 12V2A |
Working Current | 400mA |
Working temperature | -30ºC ~ +70ºC |
Device Size | 270mm*132mm*20mm |
Operating System | Linux |
Language | English as default (Other languages customization available) |
Card capacity | 2,000 IC Cards |
Recognition speed | ≥1 second |
Intelligent function | Infrared live identification detection |
Upgrade | Support online update OTA upgrade |
Alarm | Support stay alarm |
Clock | Support RTC, NTC Internet time correction |
Guarding mechanism | Anti-demolition design, to ensure the stability of equipment operation |
Recognition distance | Pure dynamic identification; 0.5-3 meters; Enable infrared live detection; 0.5-1 meters |
FAQ
Can a video intercom host be used with multiple indoor screens?
Yes, yes, you can use one host with multiple extensions, or multiple hosts with multiple extensions.
What linkage unlocking methods are supported?
1. Link indoor screen to unlock remotely. 2. APP remote unlocking. 3. Swipe the card to unlock.
Number of Card capacity supported for entry
2000 IC Cards

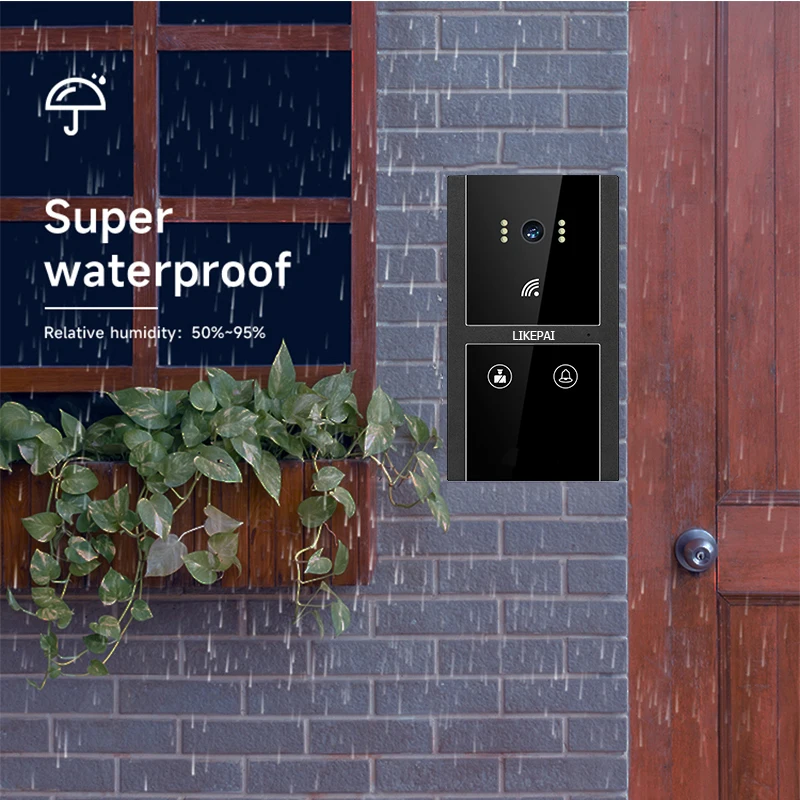

Is the TUYA Video intercom host waterproof?
YES.
What is the recommended installation height and camera viewing angle?
The recommended installation height is 1.4M and above. The viewing angle of the face recognition host camera is 67 degrees.
What is the operating temperature range?
-30ºC ~ +70ºC.The measured low temperature is -40 degrees during normal power-on work.
Does it support POE power supply?
YES, the indoor screen supports POE power supply. If the face video intercom host is not linked to the electric lock, it can also be powered by POE. If you want to power the host and the electric lock at the same time, you need to use a dedicated unlocking access control power supply to supply power together.
